Fluoropolymer Hoses

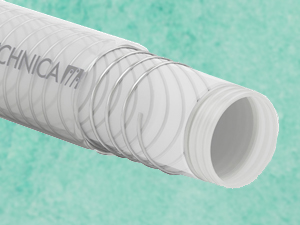

PTFE Hoses

•  Available Sizes : 1/4" -5/16" -3/8" -1/2" -5/8" 3/4" -1"
• Tube : P.T.F.E ( Polyetetrafluroethylene)
•  Temperature : -75°C to 235°C
•  Reinforcement : stainless steel braid &stainless steel wire coated by a white silicone.
•  Certifications : FDA 21CFR - 177 2600, USP, ISO 10993 - 5:2009, Hemolysis, 11:2006, Cytotoxicity

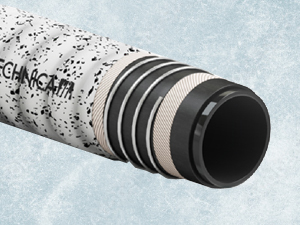

Atex Certified PTFE Hoses

•  Available Sizes : 25, 32, 38, 51, 63.5, 76.
• Tube : PTFE Core, ATEX certified, Anti-static
•  Temperature : -40°C to 150°C
•  Reinforcement : Stainless Steel Wire Helix.
•  Certifications : FDA 21CFR - 177 2600, USP, ISO 10993 - 5:2009, Hemolysis, 11:2006, Cytotoxicity

Steel Wire Braided Hoses

•  Available Sizes : 13, 16, 19, 25, 32, 38, 51, 63. .
• Tube : PTFE Core, Stainless Steel Wire Braid, smooth or corrugated
•  Temperature : -75°C to 235°C
•  Outside Surf. : Stainless Steel Braid.
•  Certifications : FDA 21CFR - 177 2600,USP Class VI, Hemolysis ,USP 661

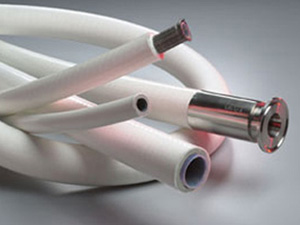

PFA core - EPDM Outer Surfce Hoses

•  Available Sizes : 10, 13, 16, 20, 25, 32, 38, 51, 63, 76, 100.
• Tube : White Inner Bore in Smooth Inert PFA
•  Temperature : -30°C to 260°C
•  Reinforcement : Textile ply and Steel Wires Embedded in the Wall
•  Certifications : FDA 21 CFR 177.1550, USP Class VI, Regulation (EU) 10/2011, Regulation (EC) 2023/2006, phtalate free. ATEX validation INERIS no. l 795-2X/09.

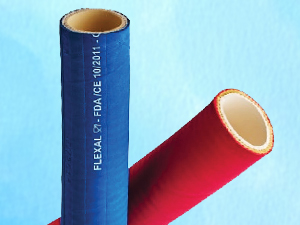

UPE Hoses

•  Available Sizes : 13, 16, 19, 25.
• Tube : Smooth UPE Core .
•  Temperature : -35°C to 100°C
•  Reinforcement : Stainless Steel Wire Helix.
•  Certifications : FDA 21 CFR 177.1520; BfR III; DM 21/03/1973, REGULATION 1935/2004/CE; REGULATION 10/2011/CE; REGULATION 1245/2020/CE;
FDA PTFE hoses for hygienic fluid transfer ATEX PTFE hoses for pharmaceutical use Wire braided PTFE sanitary hoses PFA hoses for food and pharma industries Logo FDA FDA-approved UPE hoses iso flag





Key Features
•  True Bore PTFE Smooth Core offers maximum flow .Convoluted Core offers excellent flow with enhanced flexibility
•  Imparts no taste or odor to critical streams.
•  Easily cleaned or sterilized by autoclave, steam, or detergent.
•  Optional biopharma jacketing makes stainless steel reinforced hose easier to handle by offering heat protection)
•  biopharma jacketing also provides a smooth outer surface to eliminate particle entrapment for sanitary conditions.
•  Add stainless steel armor casing or cuffs for an extra layer of protection from crushing, kinking, harsh environments, and abrasion while still allowing flexibility.
