Fluoropolymer Tubing

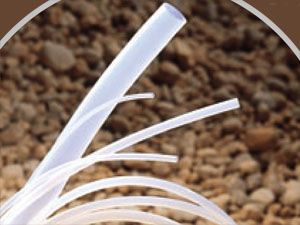

PTFE Formulation Tubing
| • | Available Sizes | : | 0,007"...0,019" . |
| • | Tube | : | PTFE |
| • | MaxTemperature | : | 500°F |
| • | Mat Specificat. | : | Unaffected by thermal aging at 400°F |
| • | Certifications | : | ASTM D-3295-81A, AMS 3653C, AMS 3654, AMS 3655 |

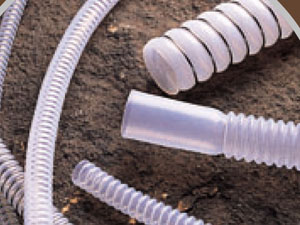

Convoluted PTFE Tubing
| • | Available Sizes | : | 1/4" -5/16" -3/8" -1/2" -5/8" -3/4" -1" -1¼" -1½" -2". |
| • | Tube | : | Translucent PTFE |
| • | Max Pressure | : | 62-17 psi at 70°F |
| • | Mat Specificat. | : | Wire coil provides increased pressure capability . |
| • | Certifications | : | FDA 21 CFR 177.2600 |

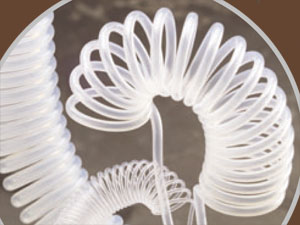

Coiled FEP Tubing
| • | Available Sizes | : | 1/16" -1/8" -3/16" -1/4" -3/8" . |
| • | Tube | : | Made of chemically inert clear FEP |
| • | Max Temperat. | : | 400°F |
| • | Mat Propert. | : | Heat set into a retractable coil .Excellent recoil memory |
| • | Certifications | : | Manufactured from FDA-sanctioned ingredients |

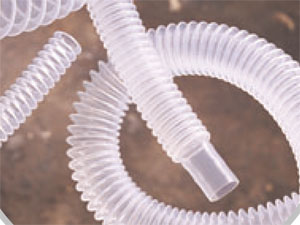

Corrugated FEP Tubing
| • | Available Sizes | : | 1/16" -1/8" -3/16" -1/4" -3/8". |
| • | Tube | : | Made of chemically inert clear FEP. |
| • | Max Temperat. | : | 400°F |
| • | Mat Propert. | : | Allows flexibility to otherwise semi-rigid fluoropolymer tubing |
| • | Certifications | : | Manufactured from FDA-sanctioned ingredients |

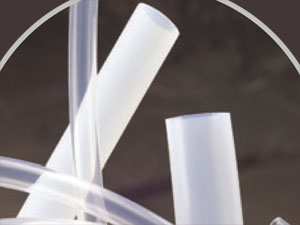

PTFE ,FEP,& PFA Formulations
| • | Available Sizes | : | 1/32" -1/16" -3/32" -1/8" -3/16" -1/4" -5/16" -3/8" -7/16" -1/2" -9/16"-5/8" -11/16"-3/4"-7/8"-1"-1¼"-1½"-2". |
| • | Tube | : | PTFE ,FEP , PFA . |
| • | Temperature | : | PTFE 500°F, FEP 400°F , PFA 500°F |
| • | Certifications | : | FDA 21CFR - 177 2600 |
FEP (Fluorinated Ethylene Propylene)
resin is pelletized for its hot-melt
extrusion process.
FEP tubing is known for its gas and vapor permeability properties and excellent UV transmission ratings. While very similar in composition to PTFE, there are a few notable differences.
FEP has a lower heat shrink temperature and is clearer and more flexible than PTFE.
